Overview

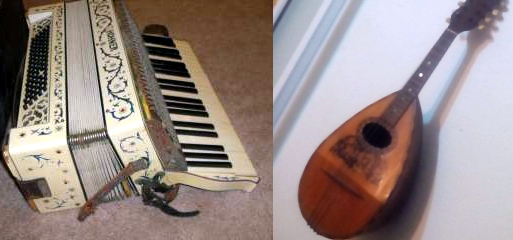

There were a number of musical people in my family, so I 'inherited' instruments as I grew up, including a Neapolitan Mandolin, a harmonica and...a piano accordion. I recall taking these to pieces, cleaning them up and making them playable at a very young age.Piano accordion similar to the one in my childhood and the Mandolin which I still own today

I suppose I bought my first guitar in about 1975, which I still have today - a Spanish classical guitar called a Raimundo123 which cost me £75, which at the time was quite a large sum of money for a schoolboy with no paper round. Actually it turned out to be a good buy. The Raimundo123 was a handmade entry level classical guitar made in Valencia by a traditional luthier who still make the same model today, which has a retail price tag of about £300.

Not long after, I got an electric guitar which was a cheap Japanese Gibson Les Paul copy but I couldn't afford an amplifier. Fortunately I had been born into a house with old parents, grandparents and family, so there were no end of disused valve radios which I used to butcher to construct my own. I even had a valve Car Radio from an old Ford that I ran from a car battery (it seemed to need more current than my Hornby transformer could comfortably deliver). So through guitar I learned a lot about electronics.

The piano accordion was later sacrificed in the pursuit of a home-made synthesizer. Basically I cut off the squeeze box bit leaving the keyboard and their metal levers, which I used to make an electric circuit, and couple each to a simple mono-vibrator - not the most sophisticated instrument in the world but it worked, even if it didn't inspire me to become a keyboard player!

The next decade saw me change guitars a lot. I lost count. As I never had much cash I often used to butcher the guitars too and learned how to set them up myself. I learned by doing, rewiring, re-fretting repainting etc etc.

To this day, I still don't have any money (I must a true artist), so I still do my own guitar-setups, repairs and customizations.

I'll try my best to keep a record here of what I get up to in case it helps out somebody.

Guitar Repair/Customization Blog

Setup and Intonation of a P.R.S SE Single Cut

Working around an awkward bridge

P.R.S SE Single Cut - Setup

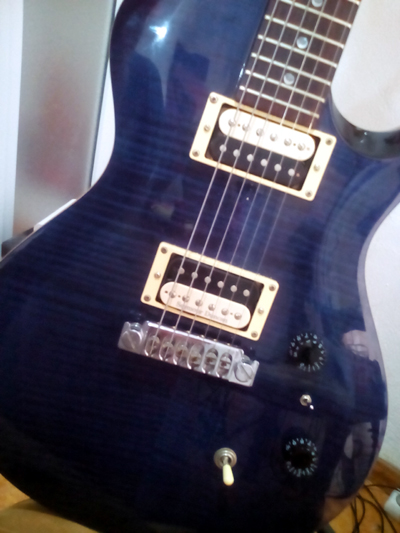

Body shot of a Paul Reed Smith SE Single CutThis was the first time I'd been given a PRS to work on so I was looking forward to the job. What a beautiful instrument. Fairly heavy body (Mahogany I'm told) with contouring that made it feel very comfortable to hold, and a great sound when I plugged it in - I can see why people become converts to these things!

The brief from the client was that it had not been out of it's case for a year so it needed to TLC - a setup with particular regard to the intonation was the order of the day.

A setup establishes the playability of the guitar, essentially by making sure the distance between the strings and the fret-board is consistent for the whole neck and that it matches the gauge of strings used and the preference of the player. In this case, I know the client has quite large hands and he does not like the 'action' - the distance between the neck and the strings to be too low. He likes to get under the strings when bending. So the first thing was to make sure the action suited him.

I took some measurements and the action didn't need any adjusting at all. There was just the right amount of bend in the neck so the truss rod didn't need adjusting. The nut was fine too, so were any further adjustment needed it would only be necessary to adjust the bridge height. This guitar has an all in one bridge with a height adjustment screw at each end - it would only be necessary to raise or lower these to alter the action. As it turned out, even this was not required. I think they setup these guitars pretty well at the factory!

..and now intonation

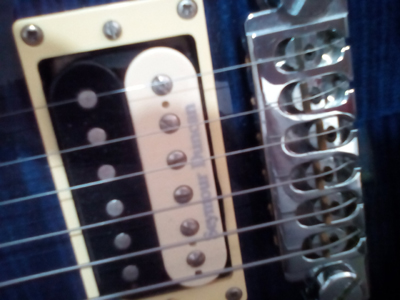

Closeup of the PRS wrap-around bridgeDespite not needing any setup adjustments, the intonation was way off. A lot of guitar players get baffled by intonation, but it's really not that hard to understand. Guitar necks are built to a specific scale length, so the frets are distanced according to that dimension. However different gauges of string, temperature variations and differences in setup (whether a high or low action is used) mean the actual length of the string might be very slightly incorrect. Most guitars have a way of adjusting this by moving saddles on the bridge that can lengthen or short each string very slightly.

Well this bridge was a little more tricky than most. You can probably see in the picture, there are saddles on the bridge for each string, but in order to move them, there are grub-screws that fit a small Allen key. But the angle at which they are set means the string is in the way - I couldn't get the Allen key in without de-tuning the string by an octave, so any hopes I had of adjusting the strings under tension was impossible. Probably not a bad thing as it minimizes any risk of damaging the saddles but it meant the job took a half an hour longer than I budgeted for!



Anyway, in case you are not familiar with the method of fixing the intonation on a guitar, it's really easy. Set your guitar tuner to chromatic mode. Then tune up as normal. Now try each string in turn but fretting the notes at the twelfth fret. all being well, as you would expect, the notes should be an octave higher. If they are sharp or flat you have an intonation problem. If the note at the twelfth is sharp, you need to extend the effective length of the string by moving the bridge saddle back, or forward if the note is flat. In this case that meant de-tuning each string by an octave to get access to loosen the grub screw, move the saddle, re-tighten and check with the tuner. All in all it took about half an hour to do all six strings.



Is Intonation worth it?

Given it is such a seemingly small, fiddly adjustment, is adjusting the intonation worth it? Well, if you try it you'll surely hear the difference. I find that the CAGED chords will sound more in tune with each other when the intonation is 100% correct. It's as though the guitar is suddenly in tune with itself. Even if you're a heavy metal player grundging out five chords all night, you'll probably notice a crisper less muddy distortion coming from your amp.

I noticed this most of all when I replaced the traditional three saddle bridge on my thirty year old Telecaster with a bridge with six independent saddles. After intonation it was like a new guitar - as if it was the first time I was able to tune it properly since I bought it. Whenever I see Telecasters with three saddles now I think the owner is really missing a trick!

Posted by Steve Gould Wednesday, June 1, 2016 5:51:00 PM Categories: Guitar bridge guitar saddles intonation setup
Comments(0)

Strat Scratchplate

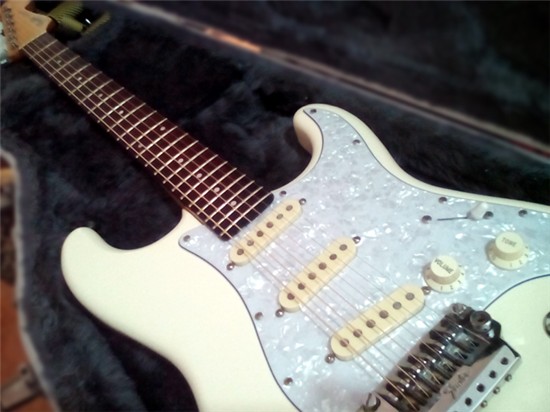

Fitting a custom scratchplate to a genuine Japanese Strat.

The client had a spec - to change the plain white scratch-plate on his Fender Stratocaster to something a bit more exotic. We emailed, we talked and after trawling several websites, he sent me a link to the scratch-plate of his dreams. The one he chose was a mother of pearl effect that cost about thirty dollars. I immediately went to some Chinese websites and found the same scratch-plate for about three dollars. Had to wait a couple of weeks for it to arrive in the mail but the client was happy as I passed the saving onto him.

Out of the box the new scratch plate looked fine, though when I actually came to fit it, there was a problem near the bridge. The new scratch plate had a cutaway section for the old style tremolo whereas this guitar has a Fender floating trem which is bigger and has the two bridge posts right where the new scratch-plate needed to go. Since I'm starting to get more and more of this sort of of work I decided to document each step and record the time for each, so I know how much to charge. Here is how the job went....

Step One (15mins) - Removed existing scratch plate and unscrewed all the hardware. First surprise - the pickups were non standard. The new pickups were the Bare Knuckle Rory Gallagher Irish Tour set.

Step Two (5 mins) - The tremolo block was a bit grubby so I sprayed a ton of WD40 on it and left it to soak for a while.

Step Three (10 mins) - The fret-board was a but grubby too so I cleaned it with lemon oil.

Step Four (5 mins) - Polished the guitar body which was especially dirty where the scratch plate had been.

Step Five (40 mins) - Compared the scratch-plates and found them not quite the same, so marked out a new shape around the tremolo and routed by hand with a Dremel on its lowest setting so as not to melt the plastic. This was the trickiest bit of the project so I took my time to get it absolutely right.

Step Six (10 mins) - Attached the hardware to the new scratch plate

Step Seven (10 mins) - Attached scratch plate to the guitar body. Found two holes were misaligned so had to drill pilots for two new ones.

Step Eight (90 mins) - Replaced strings. Setup for new strings. These were a much heavier set and I needed to dig out a fifth spring to attach to the tremolo block to handle the increased tension, and adjustment was also required to the intonation.

It's always tempting to think of something like changing a scratch-plate as a trivial five minute job, but as this miniature 'time and motion study' shows, this job took a shade over three hours.

Posted by Steve Gould Wednesday, June 1, 2016 12:20:00 PM Categories: Scratch plate
Comments(0)

Machine head replacement

Broken tuning knobs replaced on a 1970's Macaferri copy

CSL were a Japanese guitar maker back in the 1970's who were among many pioneering the manufacture of cheap copies of American and European Instruments. I've been using this Maccaferri copy as my main acoustic for as long as I can remember and as such it has been quite bashed around. Most notably, three of the cheap plastic tuning keys had been smashed. Out of cheapness/laziness I'd only temporarily replaced these with any old replacement knobs that came to hand. Now, in my semi-retirement I thought the time had come to fit replacement machine heads. I'd found some going cheap on a Chinese website (US$8.99) which seemed to fit the bill so after checking the distance between each pin was correct, I ordered a pair of rectangular heads with exposed gears.

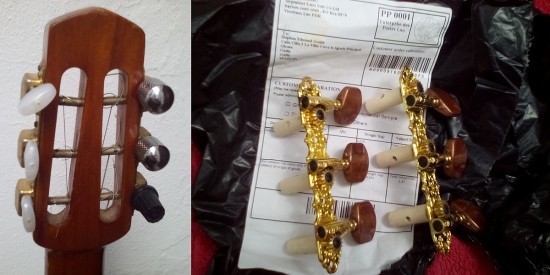

Headstock of the CSL Gypsy guitar and new machine heads

First I removed the old strings and inspected the fretboard. Whereas it looks like a rosewood neck I will precede with caution in case it is stained or painted to disguise a cheaper wood. Certainly it was very dirty, having not been cleaned for many years. I rubbed down the fretboard with fine wire wool then dressed with lemon oil from the Jim Dunlop Guitar Tech Care Kit.

Then I removed the old machine heads and cleaned the wood underneath, which had been hidden for almost half a century!

I test fitted the new machine heads but they wouldn't go through the original holes. So I measured up and the new poles needed a 12mm hole. Fortunately I had a large enough drill bit, and drilled each hole. After that I was able to fit both machine heads no problem - even the old screw holes lined up. Job done in under an hour.

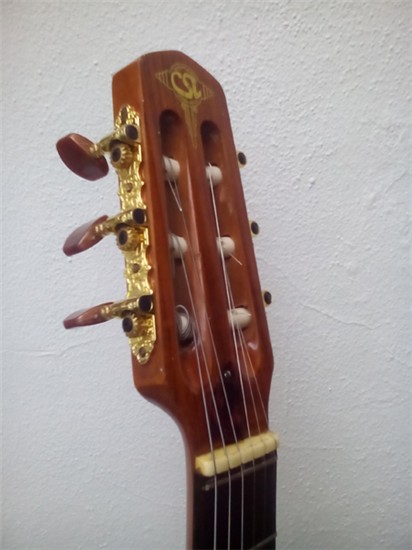

New guitar machine heads







Posted by Steve Gould Thursday, April 21, 2016 4:37:00 PM Categories: headstock Machine Head Tuning Pegs
